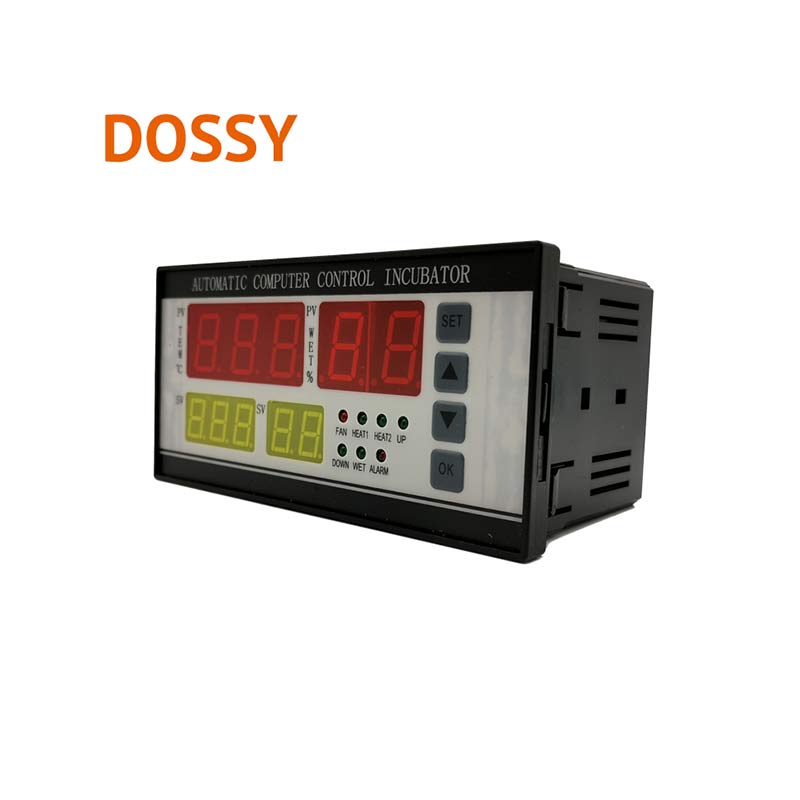

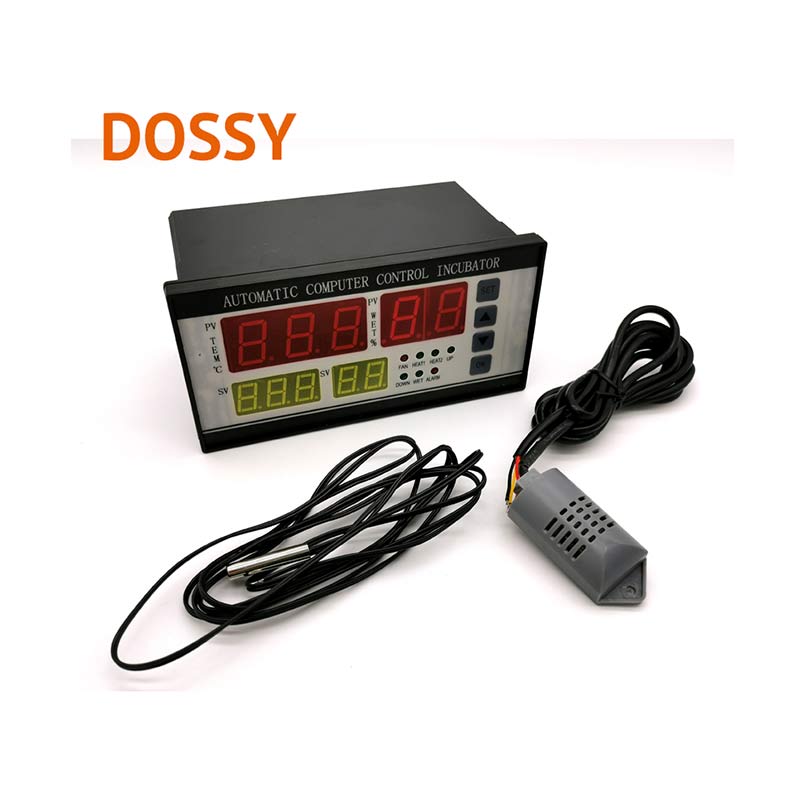

The automatic multi-function incubator researched and produced by our company uses the more popular microcomputer-based technology (using the latest micro-electronics technology and new components), equip with the imported digital temperature sensor and France moisture sensitive capacitance humidity sensor, which makes this instrument miniaturization, intelligent, high measurement accuracy. This incubator is stable and reliable, time-saving, labor-saving, and easy-to-use. It is the ideal incubation equipment for propagation of poultry and rare birds and small and medium-sized hatchery.
Main Technical Index:
1.Temperature Measuring Range: 0-99°C
2.Temperature Measurement Accuracy: ±0.1 °C
3.Humidity Measurement Range: 0—99%RH
4.Humidity Accuracy: ±3%RH
5.Number of signal-output:7, (over-temperature, temperature control, insufficient temperature, egg left-turning, egg right-turning, humidity control, alarm)
6.The maximum output load current: temperature control, insufficient temperature ≤ 8A/AC220V, over-temperature, egg left-turning, egg right-turning, humidity control, alarm ≤ 1A/AC220
7.Number of egg-turning: the maximum record is 999 times.
8.cycle of egg-turning: adjustment of 0 - 999 minutes ( the factory default is 120 minutes)
9.egg-turning time: adjustment from 0 to 999 seconds (the factory default is 65 seconds)
10.ventilation cycle: from 0 to 999 minutes(the factory default is 120 minutes)
11.ventilation time: from 0 to 999 seconds (the factory default is 30 seconds)
12.Temperature measurement length: About 2 meters
Working Condition:
Working Voltage: AC 180V-240V, 50HZ
Relative Humidity: less than 85% RH
Environment Temperature: -10°C - 60°C
Parameter declaration
Code
|
Description
|
Relationship with fast setting(TT,HH)and default
|
TT
|
Fast setting termperature
|
37.8°C
|
HH
|
Fast setting humidity
|
60%RH
|
P1
|
Over-temperature alarm
|
+1.5 °C
|
P2
|
Fan starting temperature value
|
+0.2°C
|
P3
|
Heater stop value
|
P3=TT
|
P4
|
Heater start value
|
-0.2°C
|
P5
|
Standby heater start value
|
-0.2°C
|
P6
|
low temperature alarm
|
-0.8°C
|
P7
|
Over humidity alarm
|
+8%RH
|
P8
|
Stop humidification value
|
P8=55
|
P9
|
Start humidification value
|
-4%RH
|
PP
|
Low humidity alarm
|
-13%RH
|
Code
|
Name
|
Description & Default
|
F1
|
Egg turning interval
|
Left turning+F1+right turning (90minuter)
|
F2
|
Egg turning time
|
180(second)
|
F3
|
Ventilation interval
|
120(minuter)
|
F4
|
Ventilation time
|
30(second)
|
F5
|
temperature calibration
|
Correct temperature sensor
|
F6
|
Humidity calibration
|
Correct humidity sensor
|
F7
|
Egg turnover times
|
|

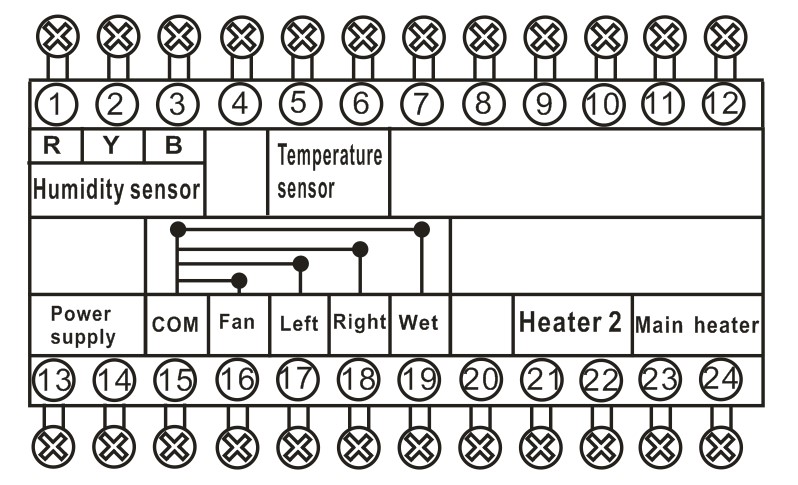

Wiring Diagram

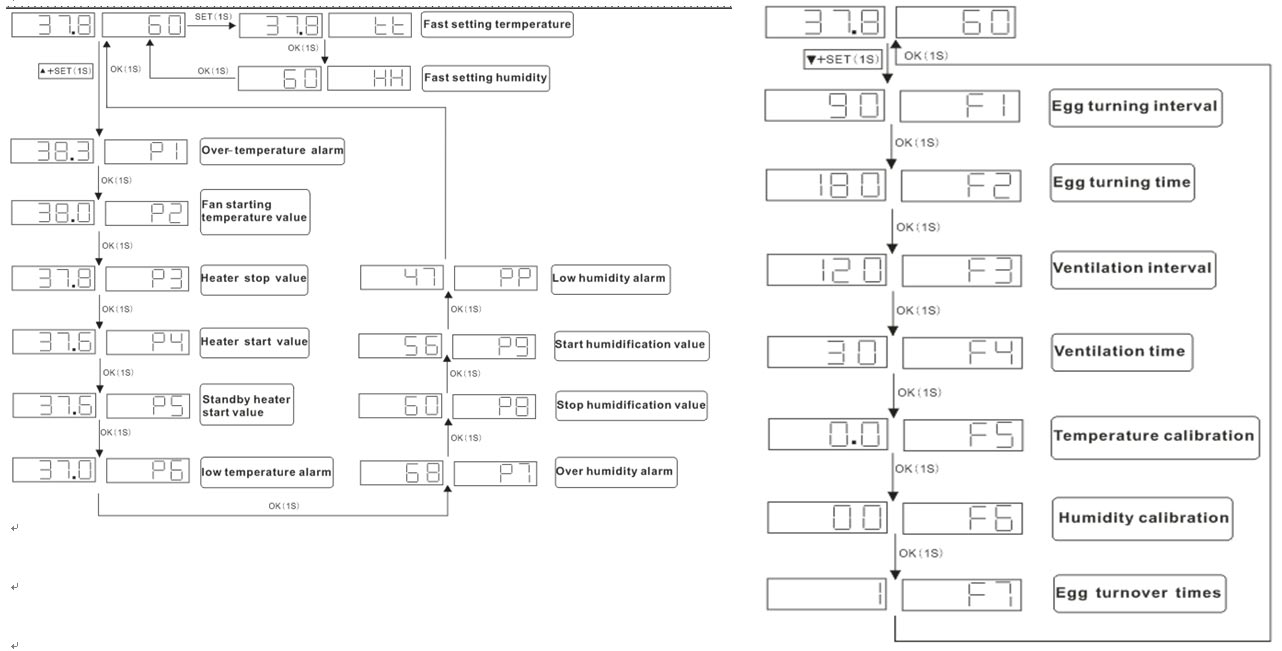

Function logistics
Other function:
Manual egg-turning:
Press the key ▲ last 2 second, the controller will enter into the state of manual egg-turning The computer will define automatically the direction of egg-turning.
Silencing function:
when the controller give an Buzzer, press the key ▼ ,to remove the buzzer sound
Restore Factory Settings
Press both keys of ▲ ▼ at the same time for more than three seconds, the controller will display zero. Raise hand immediately
after hearing "Di” from the buzzes the controller will automatically restore the factory settings.
Notice:

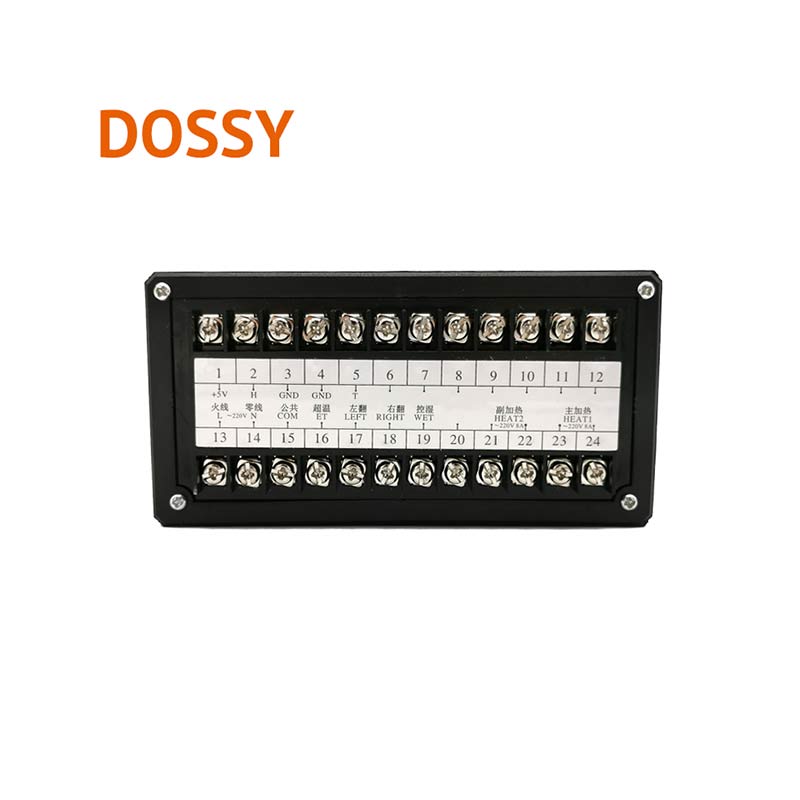

The meter output 220VAC 50/60hz so can directly connect to the port 15,16,17,18,19
